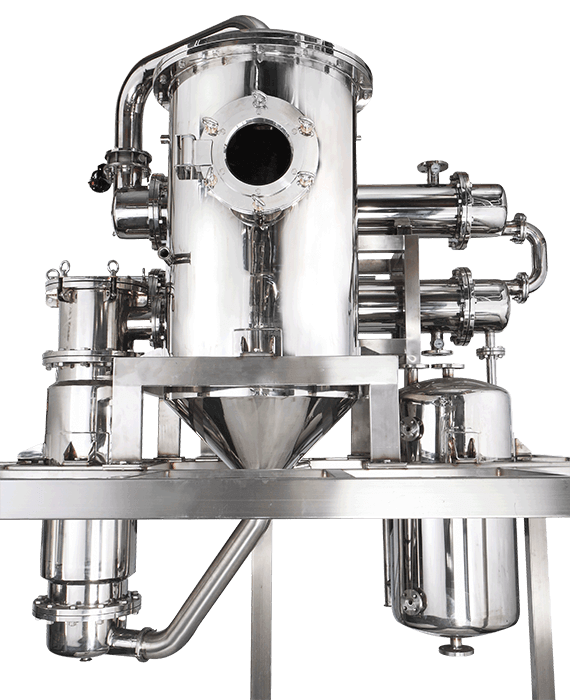

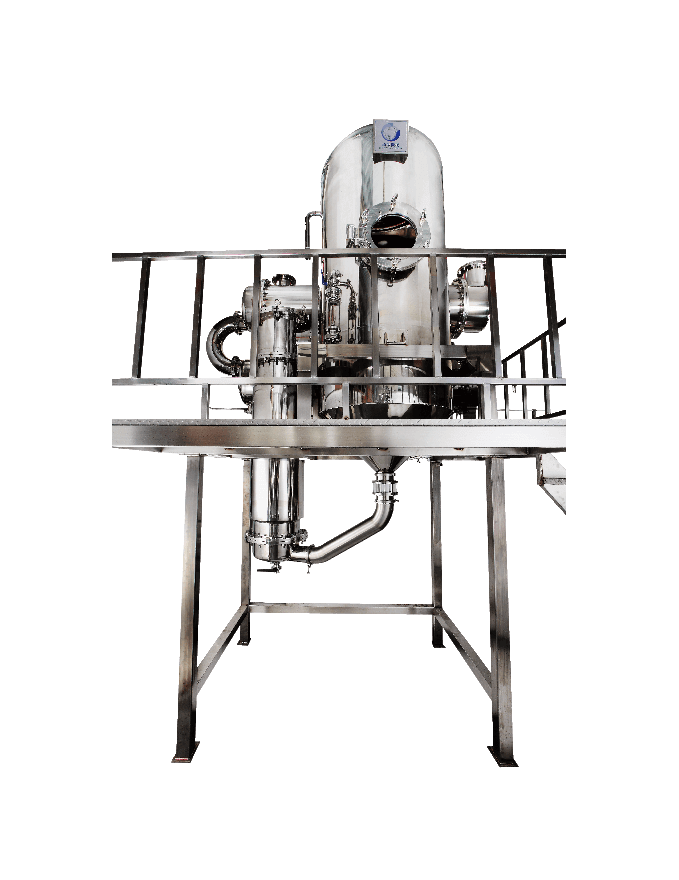

Vacuum Low-Temperature Concentration Equipment - Chi Way Machinery Co., Ltd. Vacuum Low-Temperature Concentration Equipment - Chi Way Machinery Co., Ltd.
Vacuum Low-Temperature Concentration Equipment - Chi Way Machinery Co., Ltd.

Feature:


  • Concentration Equipment is for concentration after extraction of extraction of Chinese herbal medicine, tea, coffee, Health food, and biotechnology.
  • Follow the regulation of cGMP, PIC/S, GMP.
  • Rising membrane evaporator is suitable for mass production.
  • Equipped with temperature detector.
  • The inner tube of the heater is made of seamless steel pipe, and the inner diameter of the pipe is polished.
  • The machine uses a new man-machine interface control, touch screen, easy to operate, multi-mode memory can be modeled.
  • Heat exchanger: all made of sanitary pipe.
  • High condensing efficiency, available circulating cooling water, doesn’t need to use ice machine, can according to customer’s demand.
  • Small horsepower to achieve high vacuum level, can save more energy.
  • Low temperature concentration: 45 ~ 60°C.
  • The vacuum level can reach -650 ~ 720mm Hg
  • In the process of concentration, water and alcohol can be recovered, alcohol recovery rate as high as 80%, can reduce costs.
